2224 aluminum wire

2-2-2-4 Aluminum Wire Direct Burial Cable For Sale

2 2 2 4 aluminum wire direct burial sample
2 2 2 4 aluminum wire direct burial sample

Check Our Production Videos:



Please kindly send us your inquiry aluminum wire direct burial cable list and order quantity, our sales team will send our offer documents to you within 12 hours. Email: summer@hdcaerialbundledcable.com

2224 urd wire diagram
2224 urd wire diagram



Product structure view

Voltage: 0.6/1Kv
Phase conductor: Aluminum(AAC)
Neutral messenger: AAC/AAAC/ACSR
Insulated: PE/PVC/XLPE/LEPE/HDPE
Color: Black or as your request.
Standards: ICEA or according to your requirement
Packaging: Wooden or Wooden Iron Drum.
Application: Overhead power transmission line
Email: summer@hdcaerialbundledcable.com



The introduction of 2 2 2 4 Aluminum Wire Direct Burial Cable

Application: Used to supply 3-phase power, usually from a pole-mounted transformer, to the user’s service head where connection to the service entrance cable is made. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors. Email: summer@hdcaerialbundledcable.com

Specifications:
•B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
•B-231 Aluminum Conductors, Concentric-Lay-Stranded.
•B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
•B-399 Concentric-Lay-Stranded, 6201-T81 Aluminum Alloy Conductors.
•B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire.
quadruplex service drop cable meets or exceeds all applicable requirements of ICEA S-76-474 .

Please choose the specification you need. Meanwhile, we can customize for you. Our competitive price will send you within 12 hours. Email: summer@hdcaerialbundledcable.com

2 2 2 4 Aluminum Wire Direct Burial Cable Parameter List

2 2 2 4 Aluminum Wire Direct Burial Cable-AAC Neutral Messenger Parameter
Quadruplex -AAC Conductor & Neutral Messenger
Code WordAAC Phase ConductorAAC Neutral MessengerWeightAmpacity
AWG or KcmilNo of StrandsInsulation thicknessAWG or KcmilNo of StrandsBreaking StrengthPeXlpePeXlpe
MilsLbsLbs/MftLbs/Mft70°C90°C
Haiotis614567563100.6103.85969
Petella674567563107.8111.759
Fusus414547881149.4153.27891
Oyster474547881159163.978
Clam2745271350239.7245.9106123
Snail1/07601/071350387397.6143167
Murex1/07601/071990387397.6143
Purpura1/019601/071990382.4392.4143
Nassa2/07602/072510476.7488.6165193
Trophon2/019602/072510470.9482.1165
Melita3/019603/0193310581.3593.9192224
Portunus4/019604/0194020719.4733.7224262
Nannynose336.41980336.41961461161.71185.5295345

Please check the specification, our competitive price will send you within 12 hours. Email: summer@hdcaerialbundledcable.com

2 2 2 4 Aluminum Wire Direct Burial Cable-AAAC Neutral Messenger Parameter
Quadruplex Service Drop-Alloy
Code* WordPhase ConductorBareWeightAllowable
Neutral MessengerPer 1000 ft.(lbs.)Ampacities+
Size(AWG or kcmil)Strand- ingInsul. Thick. (mils)Equiv. Dia. (AWG)++Size++ (kcmil)Strand- ingRated Strength (lbs).XLPPOLYXLPPOLY
6201 ALLOY NEUTRAL-MESSENGER
Bay6145630.58711101371377560
French Coach6745630.58711101461467560
German Coach4145448.697176020520510080
Arabian4745448.697176021721710080
Belgian2745277.4772800328328135105
Shetland1/09601/0123.374460519519180140
Thoroughbred2/011602/0155.475390639639205160
Trotter3/017603/0195.776790789789235185
Walking4/018604/0246.978560977977275210

Please check the specification, our competitive price will send you within 12 hours. Email: summer@hdcaerialbundledcable.com

2 2 2 4 Aluminum Wire Direct Burial Cable-AAAC Neutral Messenger Parameter
Quadruplex Service Drop-ACSR
Code* WordPhase ConductorBare Neutral MessengerWeight Per 1000 ft.(Ibs.)Allowable Ampacities+
Size (AWG or kcmil)Strand-ingInsul. Thick. (mils)Size (AWG or kcmil)Strand-ingRated Strength (Ibs).XLPPOLYXLPPOLY
ACSR NEUTRAL-MESSENGER
Morochuca614566/111901451457560
Chola674566/111901531537560
Morgan414546/1186021721710080
Hackney474546/1186022922910080
Palomino274526/12850347347135105
Costena1/09601/06/14380549549180140
Grullo2/011602/06/15310677677205160
Suffolk3/017603/06/16620837837235185
Appaloosa4/018604/06/1835010381038275210
Gelding336.419804/06/1835014941494370280
Bronco336.41980336.418/1868015681568370280

Please check the specification, our competitive price will send you within 12 hours. Email: summer@hdcaerialbundledcable.com

How to prevent 2/2/2/4 aluminum wire direct burial cable failure?

Everything has a life span, and the 2224 aluminum wire is no exception. Only when we do good care and maintenance can we make its service life longer. There are always a variety of small problems with overhead insulated cable in service due to some uncontrollable external force factors or workers negligence. Why does 4 urd wire failure? How to prevent 2 2 2 4 aluminum wire direct burial failure? Huadong Cable Group will give you some professional tips. If this article doesn’t cover your problems, please feel free to contact us any time. Email: summer@hdcaerialbundledcable.com

2224 aluminum wire demo
2224 aluminum wire demo

Why does2 2 2 4 aluminum wire direct burial failure?

In Huadong Cable Group opinions, there are two uncontrollable main external force factors that lead to the failure of the 2224 urd wire. First of all, the wind will cause the failure of 2 2 2 4 aluminum wire direct burial. As we all know, 2224 aluminum wire is a transmission line erected in the air. So the cable is inevitably affected by the wind. As we all know, you should arrange the cable horizontally. And the distance between the wires is small in overhead insulated cable distribution lines. If the arc of the wires in the same span is different , the swinging of each wire is not the same when the wind blows. Email: summer@hdcaerialbundledcable.com

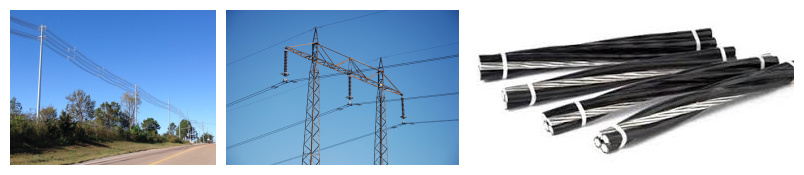

4 urd wire transmission line
4 urd wire transmission line

Therefore, the wires collide with each other result in the inter – phase short circuit. It is possible to break the branches off when the wind blows, If there are trees around 4 wire service cable, the fallen branches are likely to press the 2 2 2 4 aluminum wire direct burial cable. And some other failures including inter-phase short circuit or cable break-off accident. Email: summer@hdcaerialbundledcable.com

The second external force factor is air. Everybody knows, there is not only oxygen in the air for us to breath. But also moisture and even harmful gases, such as sulfur dioxide、hydrogen sulfur、nitrogen dioxide and so on. Both moisture and harmful gases can accelerate corrosion of 4 urd wire and reduce cable’s service life. All of these are the most common external force factors that Huadong Cable Group has concluded. Welcome to contact us if you have any other questions. Email: summer@hdcaerialbundledcable.com

2 2 2 4 aluminum wire supplier
2 2 2 4 aluminum wire supplier

What can you do to prevent 2224 aluminum wire failure?

Although both wind and air are the uncontrollable external force factors, you still can do something to protect cables and prolong their service life. Firstly, you should controll the cable laying construction strictly. Please pay your attention to the tension of the wire. So that the tension of the 2224 urd wire is equal within the specified standard range. Please remember to check the electric transmission line usually. You should deal with them in time when you find the above problems. Email: summer@hdcaerialbundledcable.com

4 wire service cable structure
4 wire service cable structure

When you find out which part of the transmission line is corroded seriously, please replace it in time. It is forbidden to over-bend the 4 wire service cable. Excessive bending will lead to the concentration of the capacitive charge between the core wire and the metal mesh. And that will leads to the leakage of electricity at the bend. The 2 2 2 4 aluminum wire direct burial need your care, hope you can examine and repair it regularly. This will also save you the cost of repairs or change for new. All of these are our sincere suggestions. Huadong Cable Group will serve you in good faith, remember to if you have any other questions. Email: summer@hdcaerialbundledcable.com

different standard of 2 2 2 4 aluminum wire
different standard of 2 2 2 4 aluminum wire

How to find professional 2-2-2-4 aluminum wire manufacturers?

When you are going to buy 2-2-2-4 aluminum wire for your projects, you can find lots of suppliers from all over the world. Huadong Cable Group is one of the biggest 2-2-2-4 aluminum wire manufacturers in China, we provide large quantity 2/2/2/4 direct burial cable for the customers every year. In addition, our 4x 95mm abc cable is very famous in the world. Just leave your message, we will send the best 2-2-2-4 aluminum direct burial cable price to you as soon as possible.Email: summer@hdcaerialbundledcable.com

Huadong 2-2-2-4 aluminum wire factory
Huadong 2-2-2-4 aluminum wire factory

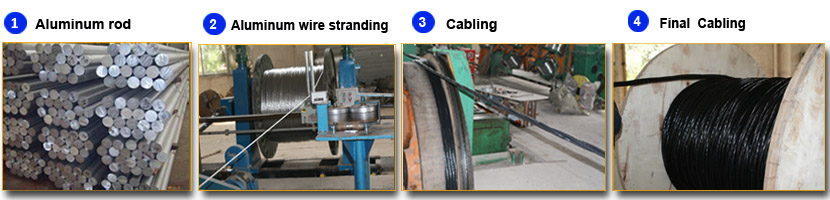

Product Process: We produce the (aerial bundled cable) ABC cable use the high quality aluminum material. Every production process has been strictly checked by our professional technical engineers. Email: summer@hdcaerialbundledcable.com

2224 urd wire production process
2224 urd wire production process

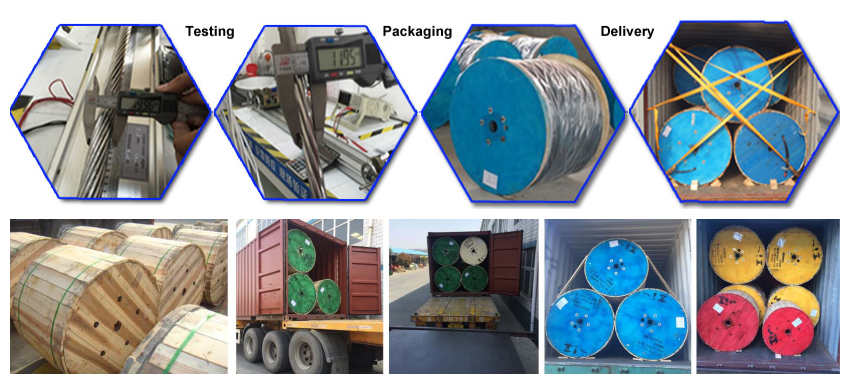

Packaging&Delivery: Every type of 2-2-2-4 aluminum wire direct burial cables have been rigorously tested before shipment. Email: summer@hdcaerialbundledcable.com

2224 aluminum wire packaging&delivery
2224 aluminum wire packaging&delivery

Custom Service

Huadong Cable Group provide custom service, you just need leave us your requirements. And we will reply you within 12 hours. Email: summer@hdcaerialbundledcable.com
