ABC(Aerial Bundle) Cable IEC 60502 & TNB (AL/PE)

ABC(Aerial Bundle) Cable IEC 60502 & TNB (ALPE)

Check Our Production Videos:



Application

The aerial bundled cables are designed for overhead distribution lines. All conductors made of AAAC, which the insulation aluminium phase conductors are helically wound over it. It can be used for fixed installation as overhead power lines up to 1000V incl. Email: summer@hdcaerialbundledcable.com

Construction

Phase Conductor H68 condition aluminium conductor, round stranded compressed.
Neutral or Messenger Conductor Alloy aluminium conductor, round stranded compressed.
Street Lighting Conductor H68 condition aluminium conductor, round stranded compressed.
Insulation PE.
Assembly The cable consists of insulated phase and street lighting aluminium conductors, shall be held firmly onto the insulated neutral messenger aluminium alloy conductor in a right hand (Z) lay.

ABC(Aerial Bundle) Cable IEC 60502 & TNB (AL/PE) Dimensions

ABC(Aerial Bundle) Cable IEC 60502 & TNB (AL/PE)
ABC(Aerial Bundle) Cable IEC 60502 & TNB (AL/PE)
Number of cores x nominal cross sectionmin. breaking load of conductor strandCurrent rating in the airOuter diameterTotal weight
mm^2kNAmmkg/km
1x16+1x 25 RM6.46115.3160
3x16+1x 25 RM6.46119290
3x25+1x 25 RM6.48423.2400
3x35+1x 25 RM6.410425.6500
3x50+1x 35 RM8.912930680
3x70+1x 50 RM12.116734.9920
3x95+1x 70 RM1820940.61270
3x120+1x 70 RM1824644.11510
3x150+1x 95 RM24.228349.21870
3x185+1x120 RM30.833254.92340
3x25+1x25+1x16 RM6.48423.2470
3x35+1x25+1x16 RM6.410425.6560
3x50+1x35+1x16 RM8.912930740
3x70+1x50+1x16 RM12.116734.9980
3x95+1x70+1x16 RM1820940.61330
3x120+1x70+1x16 RM1824644.11580
3x150+1x95+1x16 RM24.228349.21940
3x185+1x120+1x16 RM30.833254.92410

Please check the specification, Our competitive price will send you within 12 hours. We can customize other cross-sections on your request.

xlpe insulated aerial bundled cable IEC 60502

Why Choose Us?

As one of the biggest ABC (aerial bundled cable) manufacturers in China, we provide different kinds of abc cable for the customers from all over the world. Our abc cable that in accordance with IEC standard. If you need ABC(Aerial Bundle) Cable in IEC 60502 & TNB (AL/PE) standards, just leave your message. We will provide the best abc price for you. Email: summer@hdcaerialbundledcable.com

huadong aerial bundled cable factory
huadong aerial bundled cable factory

Product Process: We produce the ABC (Aerial Bundled) Cable use the high quality aluminum material. Every production process has been strictly checked by our professional technical engineers. Email: summer@hdcaerialbundledcable.com

ABC(Aerial Bundle) Cable IEC 60502 & TNB (ALPE) production process
ABC(Aerial Bundle) Cable IEC 60502 & TNB (ALPE) production process

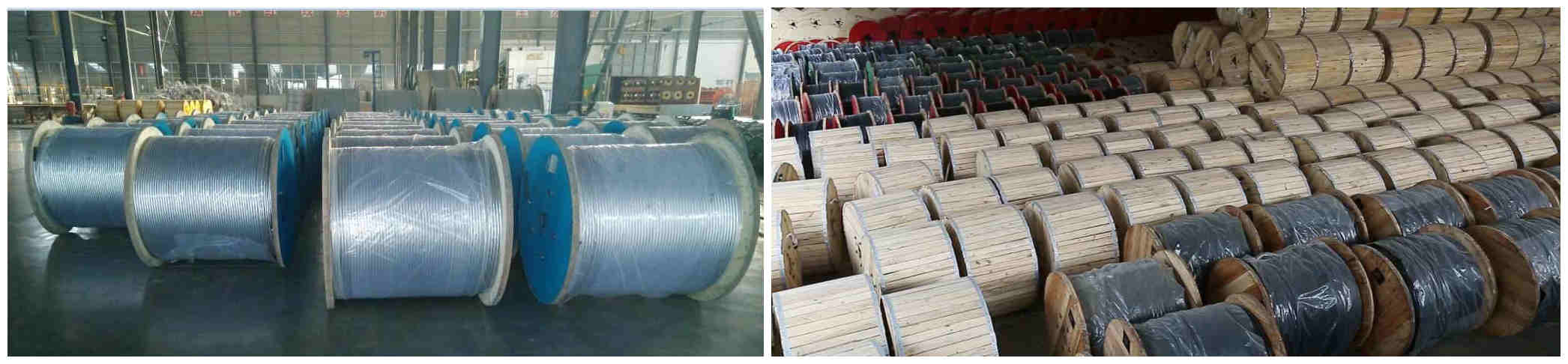

Packaging&Delivery: Before shipment every types of cables have been rigorously tested.

ABC(Aerial Bundle) Cable IEC 60502 & TNB (ALPE) testing&delivery
ABC(Aerial Bundle) Cable IEC 60502 & TNB (ALPE) testing&delivery

If you want customize the cable, Please send us your requirement.

Customer Case: We have exported wires and cables to more than 30 countries, such as: Russian, America, Yemen, South America, North America, Middle East, Africa, Asia, Oceania countries and etc.Email: summer@hdcaerialbundledcable.com

buy low price abc cable from Huadong
buy low price abc cable from Huadong

Please feel free to leave your requirement, we will reply you within 12 hours. Email: summer@hdcaerialbundledcable.com
