ABC Cable
ABC cable (Aerial Bunched Cable), is a type of electrical cable commonly used for overhead power transmission and distribution in urban and rural areas.
Unlike traditional overhead power cables that use separate bare conductors, ABC cable consists of multiple insulated conductors bundled together with a supporting messenger wire.
This design offers several advantages, such as increased safety, reliability, and lower installation costs. Today, it has become a popular choice for power companies around the world.
ABC Cables With Different Standards
ABC cables manufactured by Huadong Cable are made in accordance with international standards such as British Standard BS7870, French Standard NF C33 209, Australian Standard AS/NZS 3560 Part 1, as well as IEC Standard IEC 60502-1, TNB specifications, and HD 626 S1.
Our engineers will take into consideration the installation environment and regulations in the country/region where the project is located to assist you in selecting the appropriate cable products.
ICEA Standard
Application:
This overhead cable is used for distributing electrical power from the utility company’s distribution point to the customer’s premises.
Construction:
- Voltage:
0.6/1KV - Phase Conductor:
Aluminum - Neutral Conductor:
AAC/AAAC/ACSR - Insulation:
PE/PVC/XLPE/LEPE/HDPE
PRODUCT | PHASE CONDUCTOR SIZE | PHASE CONDUCTOR STRANDING | BARE NEUTRAL MESSENGER SIZE | BARE NEUTRAL MESSENGER STRANDING | NEUTRAL TYPE |
Patella | 6 | 7 | 6 | 7 | AAC |
Oyster | 4 | 7 | 4 | 7 | AAC |
Clam | 2 | 7 | 2 | 7 | AAC |
Murex | 1/0 | 7 | 1/0 | 7 | AAC |
Purpura | 1/0 | 19 | 1/0 | 7 | AAC |
Nassa | 2/0 | 7 | 2/0 | 7 | AAC |
Trophon | 2/0 | 19 | 2/0 | 7 | AAC |
Melita | 3/0 | 19 | 3/0 | 19 | AAC |
Portunus | 4/0 | 19 | 4/0 | 19 | AAC |
Nannynose | 336.4 | 19 | 336.4 | 19 | AAC |
Paludina | 6 | 1 | 6 | 41426 | ACSR |
Voluta | 6 | 7 | 6 | 41426 | ACSR |
Scallop | 4 | 1 | 6 | 41426 | ACSR |
Whelk | 4 | 1 | 4 | 41426 | ACSR |
Strombus | 4 | 7 | 6 | 41426 | ACSR |
Periwinkle | 4 | 7 | 4 | 41426 | ACSR |
Cockle | 2 | 7 | 4 | 41426 | ACSR |
Conch | 2 | 7 | 2 | 41426 | ACSR |
Janthina | 1/0 | 7 | 2 | 41426 | ACSR |
Neritina | 1/0 | 7 | 1/0 | 41426 | ACSR |
Ranella | 1/0 | 19 | 2 | 41426 | ACSR |
Cenia | 1/0 | 19 | 1/0 | 41426 | ACSR |
Cavolinia | 2/0 | 7 | 1 | 41426 | ACSR |
Runcina | 2/0 | 7 | 2/0 | 41426 | ACSR |
Clio | 2/0 | 19 | 1 | 41426 | ACSR |
Triton | 2/0 | 19 | 2/0 | 41426 | ACSR |
Aega | 3/0 | 19 | 1/0 | 41426 | ACSR |
Mursia | 3/0 | 19 | 3/0 | 41426 | ACSR |
Cerapus | 4/0 | 19 | 2/0 | 41426 | ACSR |
Zuzara | 4/0 | 19 | 4/0 | 41426 | ACSR |
Limpet | 336.4 | 19 | 336.4 | 44944 | ACSR |
Minex | 6 | 1 | 6 | 7 | 6201 Alloy |
Hippa | 6 | 7 | 6 | 7 | 6201 Alloy |
Artemia | 4 | 1 | 6 | 7 | 6201 Alloy |
Prawn | 4 | 1 | 4 | 7 | 6201 Alloy |
Crab | 4 | 7 | 6 | 7 | 6201 Alloy |
Barnacle | 4 | 7 | 4 | 7 | 6201 Alloy |
Solaster | 2 | 7 | 4 | 7 | 6201 Alloy |
Shrimp | 2 | 7 | 2 | 7 | 6201 Alloy |
Sandcrab | 1/0 | 7 | 2 | 7 | 6201 Alloy |
Gammarus | 1/0 | 7 | 1/0 | 7 | 6201 Alloy |
Echinus | 1/0 | 19 | 2 | 7 | 6201 Alloy |
Leda | 1/0 | 19 | 1/0 | 7 | 6201 Alloy |
Dungenese | 2/0 | 7 | 2/0 | 7 | 6201 Alloy |
Cyclops | 2/0 | 19 | 2/0 | 7 | 6201 Alloy |
Fulgar | 3/0 | 19 | 1/0 | 7 | 6201 Alloy |
Flustra | 3/0 | 19 | 3/0 | 7 | 6201 Alloy |
Arca | 4/0 | 19 | 2/0 | 7 | 6201 Alloy |
Lepas | 4/0 | 19 | 4/0 | 7 | 6201 Alloy |
Application:
This aerial bunched cable for overhead power distribution offers a higher level of safety and reliability and lower power losses than bare conductors.
Construction:
- Voltage:
0.6/1KV - Phase Conductor:
Aluminum - Neutral Conductor:
AAC/AAAC/ACSR - Insulation:
PE/PVC/XLPE/LEPE/HDPE
Number of Cores x Nominal Cross Section | Overal Diameter | Weight | Maximum Conductor Resistance | Minimum Breaking Load | Current Rating |
No.x mm^2 | mm | Kg/Km | Ω/Km | KN | A |
2×10 RM | 12.8 | 93 | 3.08 | 1.5 | 38 |
4×10 RM | 15.4 | 183 | 3.08 | 1.5 | 38 |
2×16 RM | 14.8 | 129 | 1.91 | 2.3 | 72 |
2×16 RN + 2×1.5 RE | 14.8 | 176 | 1.910/12.100 | 2.3 | 72 |
4×16 RM | 17.8 | 257 | 1.91 | 2.3 | 72 |
4×16 RN + 2×1.5 RE | 17.8 | 304 | 1.910/12.100 | 2.3 | 72 |
2×25 RM | 18 | 202 | 1.2 | 3.8 | 107 |
2×25 RM + 2×1.5 RE | 18 | 249 | 1.200/12.100 | 3.8 | 107 |
4×25 RM | 21.7 | 404 | 1.2 | 3.8 | 107 |
4×25 RM + 2×1.5 RE | 21.7 | 451 | 1.200/12.100 | 3.8 | 107 |
2×35 RM | 20.8 | 269 | 0.868 | 5.2 | 132 |
2×35 RM + 2×1.5 RE | 20.8 | 316 | 0.868/12.100 | 5.2 | 132 |
4×35 RM | 25.1 | 539 | 0.868 | 5.2 | 132 |
4×35 RM + 2×1.5 RE | 25.1 | 586 | 0.868/12.100 | 5.2 | 132 |
2×50 RM | 23.4 | 352 | 0.641 | 7.6 | 165 |
2×50 RM + 2×1.5 RE | 23.4 | 399 | 0.641/12.100 | 7.6 | 165 |
1×54.6 RM + 3×25 RM | 21.7 | 507 | 0.630/1.200 | 3.8 | 107 |
1×54.6 RM + 3×25 RM + 1×16 RM | 24.3 | 573 | 0.630/1.200/1.910 | 3.8/2.3 | 107/72 |
1×54.6 RM + 3×25 RM + 2×16 RM | 29.7 | 639 | 0.630/1.200/1.910 | 3.8/2.3 | 107/72 |
1×54.6 RM + 3×25 RM + 3×16 RM | 31.1 | 705 | 0.630/1.200/1.910 | 3.8/2.3 | 107/72 |
1×54.6 RM + 3×35 RM | 25.1 | 615 | 0.630/0.868 | 5.2 | 132 |
1×54.6 RM + 3×35 RM + 1×16 RM | 28.1 | 680 | 0.630/0.868/1.910 | 5.2/2.3 | 132/72 |
1×54.6 RM + 3×35 RM + 2×16 RM | 34.3 | 748 | 0.630/0.868/1.910 | 5.2/2.3 | 132/72 |
1×54.6 RM + 3×35 RM + 3×16 RM | 35.9 | 814 | 0.630/0.868/1.910 | 5.2/2.3 | 132/72 |
1×54.6 RM + 3×35 RM + 1×25 RM | 28.1 | 714 | 0.630/0.868/1.200 | 5.2/3.8 | 132/107 |
1×54.6 RM + 3×50 RM | 28.2 | 741 | 0.630/0.641 | 7.6 | 165 |
1×54.6 RM + 3×50 RM + 1×16 RM | 31.6 | 806 | 0.630/0.641/1.910 | 7.6/2.3 | 165/72 |
1×54.6 RM + 3×50 RM + 2×16 RM | 38.6 | 875 | 0.630/0.641/1.910 | 7.6/2.3 | 165/72 |
1×54.6 RM + 3×50 RM + 3×16 RM | 40.4 | 940 | 0.630/0.641/1.910 | 7.6/2.3 | 165/72 |
1×54.6 RM + 3×50 RM + 1×25 RM | 31.6 | 841 | 0.630/0.641/1.200 | 7.6/3.8 | 165/107 |
1×54.6 RM + 3×70 RM | 33 | 950 | 0.630/0.443 | 10.2 | 205 |
1×54.6 RM + 3×70 RM + 1×16 RM | 37 | 1014 | 0.630/0.443/1.910 | 10.2/2.3 | 205/72 |
1×54.6 RM + 3×70 RM + 2×16 RM | 45.2 | 1083 | 0.630/0.443/1.910 | 10.2/2.3 | 205/72 |
1×54.6 RM + 3×70 RM + 3×16 RM | 47.3 | 1148 | 0.630/0.443/1.910 | 10.2/2.3 | 205/72 |
1×54.6 RM + 3×70 RM + 1×25 RM | 37 | 1048 | 0.630/0.443/1.200 | 10.2/3.8 | 205/107 |
1×54.6 RM + 3×70 RM + 2×25 RM | 45.2 | 1150 | 0.630/0.443/1.200 | 10.2/3.8 | 205/107 |
1×54.6 RM + 3×70 RM + 3×25 RM | 47.3 | 1250 | 0.630/0.443/1.200 | 10.2/3.8 | 205/107 |
1×54.6 RM + 3×95 RM | 37.4 | 1176 | 0.630/0.320 | 13.5 | 240 |
1×54.6 RM + 3×95 RM + 1×16 RM | 41.9 | 1243 | 0.630/0.320/1.910 | 13.5/2.3 | 240/72 |
What Are The Advantages Of ABC Cable?
Aerial bundled cables (ABC) are a modern technology used for the overhead distribution of electricity.
They are also known as overhead cables or abc conductors. ABC cables are becoming increasingly popular due to their numerous advantages over traditional overhead line systems.
Improved Safety: Aerial bunched cables are safer because they are insulated. This insulation protects people and animals from accidental contact with live wires, reducing the risk of electrocution.
Additionally, since ABC wires are bundled together, they are less likely to fall, which reduces the risk of injuries and property damage.
Cost-Effective: They can be more cost-effective in some situations. For instance, they require fewer poles and supports, which reduces the overall installation cost.
Moreover, ABCs are easier and faster to install, reducing labor costs and installation time.
Reliable and Durable: ABC cables are designed to withstand extreme weather conditions such as heavy winds, snow, and ice.
This makes them more reliable, which are often prone to power outages and other failures during severe weather.
Furthermore, they have a longer lifespan than traditional overhead lines, reducing maintenance costs and downtime.
Better Voltage Regulation: Aerial bunched cables are better at regulating voltage. They have a better conductor-to-insulator ratio, which reduces voltage drop and line loss.
This makes them more efficient at delivering power over long distances.
For ABC cables, they are safer, cost effective, reliable, durable, aesthetically pleasing, and environmentally friendly.
Therefore, it is an excellent choice for both rural and urban areas.
What Is The Application Of Overhead Cable?
One of the main applications of ABC cable is in rural areas where traditional overhead power lines are not practical.
The bundled design of the cable allows for a more compact and efficient installation that requires fewer support structures.
This makes it an ideal solution for remote areas with limited access and difficult terrain.
The reduced installation costs also make it a cost-effective option for smaller communities and rural electrification projects.
Another of its application is in urban areas where space is limited.
The compact design of the cable allows for a more efficient use of available space, reducing the need for large support structures and minimizing the visual impact of power lines on the surrounding environment.
This makes it a popular choice for street lighting and other urban power distribution applications.
Overhead power cable is also commonly used in areas where there is a high risk of damage from falling objects or debris, such as in forested areas.
The bundled design of the cable provides additional protection against impact damage, reducing the risk of power outages and other disruptions.
In addition to its practical applications, ABC cable is also more environmentally friendly than traditional overhead power lines.
The reduced need for support structures and more efficient use of materials means that less waste is generated during installation.
The reduced maintenance requirements of this cable also mean that there is less need for ongoing maintenance and repairs, reducing the environmental impact of power distribution systems.
Overall, the application of ABC cable is widespread and varied, with the cable being used in a wide range of environments and situations.
Its compact design, cost-effectiveness, and durability make it an ideal solution for many power distribution projects, from rural electrification to urban street lighting.
As demand for more efficient and sustainable power distribution systems continues to grow, the use of overhead cable is likely to become even more widespread.
What Is The Price Of ABC Cable?
When it comes to purchasing ABC cables, one of the most important factors to consider is price.
The cost of ABC cables can vary significantly depending on a range of factors, including the length and diameter of the cable, the number of conductors, and the quality of the materials used in its construction.
On average, the price of ABC cable can range from a few dollars per meter to several hundred dollars per meter, with larger and higher-quality cables typically costing more.
However, it’s important to note that the price of ABC cable is not the only factor that should be considered when making a purchasing decision.
Other factors to consider include the cable’s electrical properties, such as its voltage rating, current-carrying capacity, and insulation resistance.
These properties will determine the cable’s suitability for specific applications and will help ensure that it operates safely and reliably over its lifetime.
In addition, it’s important to consider the installation and maintenance requirements of the cable, as these can have a significant impact on its overall cost over its lifetime.
For example, a more expensive cable that requires less maintenance and has a longer lifespan may ultimately be more cost-effective than a cheaper cable that requires frequent maintenance and replacement.
Ultimately, the price of ABC cable should be viewed as just one of several factors to consider when selecting a cable for a specific application.
By taking a holistic approach to cable selection, considering factors such as electrical properties, installation requirements, and maintenance needs, it’s possible to select a cable that provides the best balance of cost, performance, and reliability over the long term.

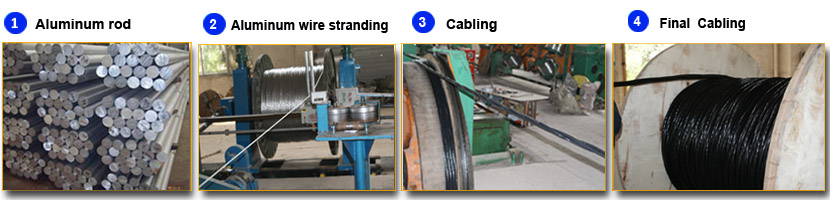

Choose Huadong ABC Cable
Looking for a reliable and affordable solution for your electrical cable needs? Look no further than our top-quality abc cable!
Our cables are manufactured to the highest standards of quality and safety, ensuring that your electrical systems are always running smoothly and efficiently.
Plus, with our affordable prices, you won’t have to break the bank to get the top-notch performance and reliability you need.
Whether you’re looking for a durable and long-lasting solution for your home, office, or industrial facility, our abc cable is the perfect choice.
So why wait? Contact us today to learn more and see for yourself why our customers keep coming back to us for all their cable needs!
